labTREAT LT10

0 to 10 GPM

Wastewater pH Neutralization Systems

lab wastewater neutralization  system

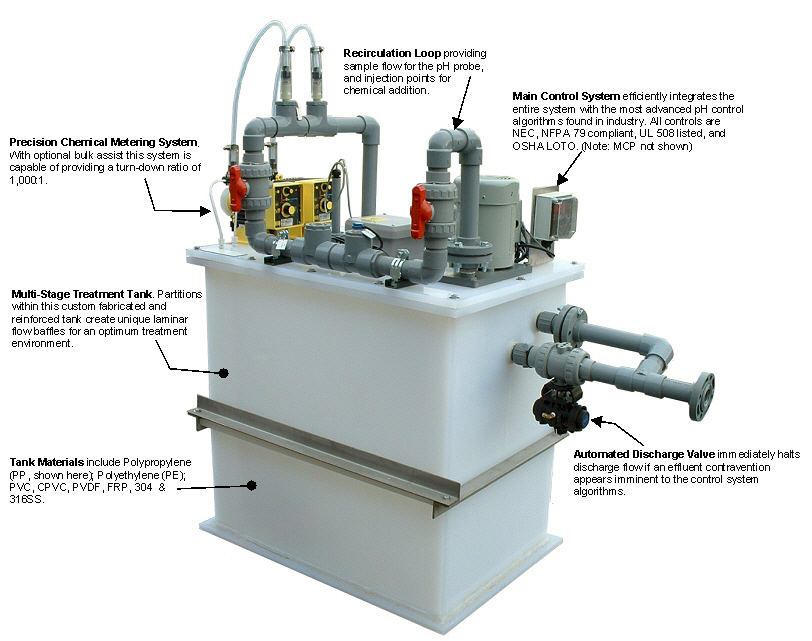

Illustrated here is our labTREAT LT10 pH Neutralization System with standard options

System Performance Specifications:

The labTREAT family of lab wastes neutralization systems are small, compact, waste neutralization systems designed to neutralize acid and caustic wastewater effluent from any source.

The LT10 neutralization system displayed here is capable of treating wastewater flows up to 10 GPM continuous and 20 GPM intermittent. With the use of an influent equalization system, which is standard on all of our neutralization systems, periodic flows in excess of 60 GPM can be handled.

The labTREAT family of neutralization systems are well suited to neutralize wastewater streams from any source including pharmaceutical manufacturing, CIP wastes, university laboratories, and science labs.

Influent Characteristic: Flow 0-60 GPM, 10 GPM average / 600 GPH max. Influent pH: 0 < pH < 14. Temperature 32-140F. (High temp units available for temperatures up to 212F.

Effluent pH Range: typical 6.5 < pH < 8.5 (note: the effluent pH range is fully programmable through the operator interface).

Effluent Monitoring: As mandated by the local controlling authority and by most discharge permits continuous monitoring of effluent flow and pH is provided on a circular chart recorder, paperless recorder, or via a data logger. Additionally SCADA systems are available with automatic report generation.


Utilities, Weights, Dimensions:

All of our lab neutralization systems are supplied as complete "turnkey" packages. Prior to shipping all plumbing and electrical connections are complete and the pH system undergoes extensive burn in testing in our QC area including a wet / hydro test.

The Main Control Panel (MCP) is equipped with a main disconnect providing OSHA Lock Out / Tag Out (LOTO) and UL 508 compliance. Electrical requires a single point connection.

All of our neutralization systems utilize a fail safe valve on the discharge that immediately halts flow in the event of a discharge contravention, alarm or a loss of power. This valve requires a small air supply. If air is not available the same function is provided in an all electric configuration.

Electrical: 480VAC, 3 phase, 60 hz, 15 amp. Disconnect not required (a disconnect is provided on our MCP).

Air: Less than 1 SCFH @ 80 psig.

Dimensions: 48" x 48" x 60"(H) - Not including the optional influent equalization system.

Weight: Approx. 300 lbs. dry (not including shipping crate).


Construction:

Tanks: PP, PE, XLPE, FRP, and all stainless alloys.

Pipe, Valves, and Fittings: PVC, CPVC, PP, PE, PVDF, and all stainless alloys.

Main Control Panel: All of our pH systems are controlled by an programmable logic controller (PLC) typically Allen-Bradley. All panels are built to NEC, UL 508 and OSHA standards.

Weight: Approx. 400 lbs. dry (not including shipping crate).
